What Is a Pivot Door and How Does It Work?

The Mechanism, Explained

A pivot door doesn’t swing on side-mounted hinges. It rotates on a pivot axis — a vertical shaft — set into the door head and the floor. The axis is typically offset from the panel edge by 6 to 12 inches, so the door swings partly into the room and partly out of it as it opens, rather than rotating entirely from a single edge.

That geometry is what makes a pivot door capable of the sizes it is known for. A hinged door is limited by the loading on its top and bottom hinges — put too much weight far from the hinge, and the door drops out of plane. A pivot door concentrates the load on a vertical axis close to the panel’s center of gravity, so an oversized panel — nine feet tall, six feet wide, 100mm thick — can turn on a fingertip’s push and hold its plane over decades of use.

Read more about our pivot doors for the full engineering context.

What the Hardware Actually Is

The engineering under a pivot door has three parts.

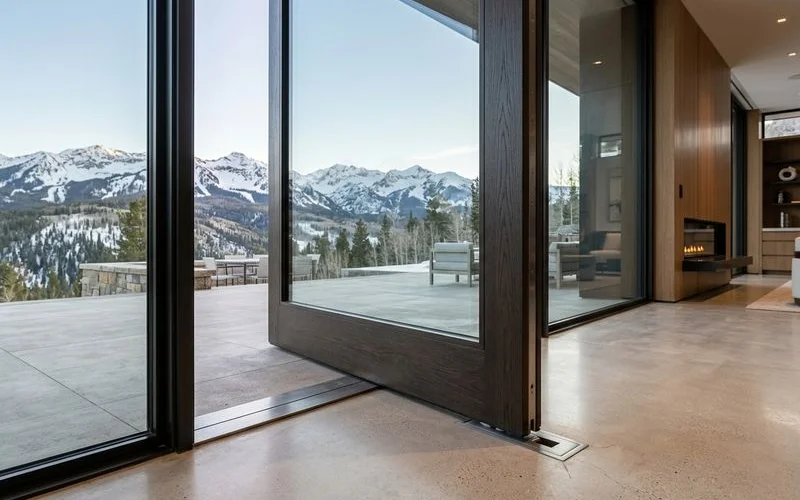

The sub-floor cement-case closer. A steel case is set into the concrete slab during the rough opening prep. It holds the bottom pivot bearing and controls the door’s movement — closing speed, hold-open detent, latching approach. It also anchors the door’s weight to the structure, not to the frame perimeter.

The top pivot bearing. Set into the door head, aligned to the sub-floor closer. It carries the vertical axis and keeps the panel from wandering out of alignment.

The 3D-adjustable pivot mount. The bearings allow adjustment in three axes — vertical, horizontal, and rotational — so the door can be aligned at install and re-aligned years later without lifting the panel out.

That’s the mechanism. The rest of the door — panel construction, thermal break, seals, hardware — sits around this vertical axis.

Why the Sizes Are Possible

A conventional hinged front door tops out at around 3.5 feet wide by 8 feet tall before hinge loading becomes the limiting factor. Beyond that size, hinges begin to sag, and the panel drifts out of alignment within a few years.

A pivot door with 100mm panel construction and engineered pivot hardware can reach 5, 6, even 7 feet wide, and can carry a full-height panel to 10 or 12 feet. The load is on the vertical axis, not on hinges. The engineered pivot bearings are sized for the load. The design consequence is direct: pivot doors can be scaled to match the architectural moment the design is asking for, without a mechanical compromise.

That is why pivot doors appear as statement entrances on modern architecture — the geometry of the mechanism is what lets the entrance be sized as sculpture rather than as commodity door.

Where Pivot Doors Fit Architecturally

The pivot mechanism is a scale story. Where the architecture calls for scale — a modernist front door on a contemporary custom home, a statement entrance on a mountain-modern residence, a monumental panel on a design-forward remodel — pivot is often the right answer.

Where the architecture calls for restraint or historical vocabulary — traditional colonial, cottage-scale, tightly-proportioned openings — a premium hinged entry door is usually the better fit. Alta Vetro supplies both lines, and the design consultation helps identify which mechanism fits the architecture.

The comparison guide walks through the trade-offs in detail — operation, sightlines, cost, scale, and where each mechanism is at its best.

Where the Choice Starts

For an architect or homeowner considering a pivot door, the first specification question is scale: what size does the entrance want to be? If the answer is a panel that a hinged door can’t cleanly carry, pivot is the mechanism. From there, panel style, finish, glass, hardware, and thermal spec are configured in the design consultation.
