Sizing and Structural Planning for Large Sliding Glass Walls

Big Glass Is a Structural Problem

A 24-foot panoramic sliding wall opens onto a view — but what makes it possible is the structure around the opening. Panel weight, wind loading, and thermal cycling all impose loads on the framing that a commodity opening never sees. Getting the sizing and structural planning right is what makes an oversized sliding wall install cleanly and perform for the life of the building.

Alta Vetro’s sliding-glass systems come with the structural specification framed out in the shop drawings. This guide covers what those drawings actually document, and what the framer and structural consultant coordinate against.

Panel Weight Limits and Glass Loading

The hardware in a sliding-glass system — the carriages, tracks, and lift mechanism — has a rated maximum glass weight per panel. On standard Alta Vetro configurations, that limit is around 45 kg per square meter for the panel construction, which accommodates:

• Standard insulated glass units (dual-pane low-E argon) on panels up to 6 feet wide, 10 feet tall
• Thicker insulated glass units (triple-pane or heavy-load specifications) on smaller panel dimensions
• Oversized configurations with specialty hardware on larger panels

Panel weight per square foot compounds with panel size. A 6-foot by 10-foot triple-pane panel can approach 500 pounds. That weight moves on the sliding hardware — quietly and effortlessly on well-installed systems, but the structure has to accept the load.

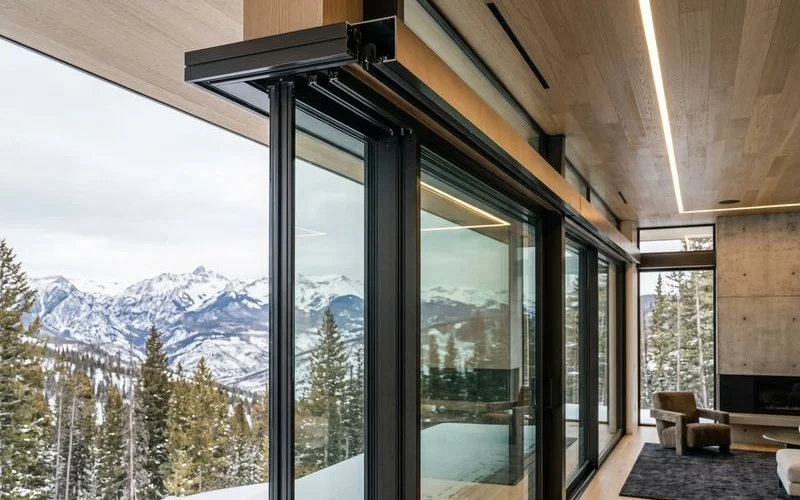

Header Sizing

The header above a sliding-glass opening carries both the load above the opening (roof, upper floor, wall assembly) and the panel weight of the top-hung tracks. Header sizing needs to accept both loads without deflecting significantly across the span.

Standard header specifications on Alta Vetro sliding-glass shop drawings include:

• Header material — typically engineered lumber (LVL) or steel beam depending on span and load
• Header depth sized to limit deflection across the opening span
• Bearing detail at the header ends — how the header transfers load to the wall studs on either side of the opening

For most residential sliding-glass installations up to about 24 feet wide, engineered lumber headers handle the load. On wider openings or on installations with heavy roof loads above, steel beams may be specified.

Jamb Reinforcement

The vertical framing on either side of the sliding-glass opening — the jamb — carries the concentrated force of the closed-door lock and the perimeter seal compression. On lift & slide systems, the closed-position force is significant; the jamb has to hold its geometry under that force.

Standard jamb specifications include:

• Full-height jamb studs at the opening perimeter
• Trimmer stud reinforcement at the closed-door lock and interlock positions
• Anchor plates where the frame connects to the jamb

Sill and Threshold Preparation

The sill is where the sliding-glass system meets the floor. Two considerations dominate:

Track flatness. The sill needs to be dead flat within the manufacturer’s specified tolerance across the whole track length. On a 24-foot track, a small variation in sill level translates to a track that binds or a panel that hangs at inconsistent height. Framing accuracy matters here.

Threshold drainage. On exposed openings — the majority of Colorado mountain-home installations — the sill needs to accommodate integrated threshold drainage. The drainage channel routes water away from the panel seals; the sill assembly is designed around it.

The flush sills and barrier-free thresholds guide covers the threshold detail options in more depth.

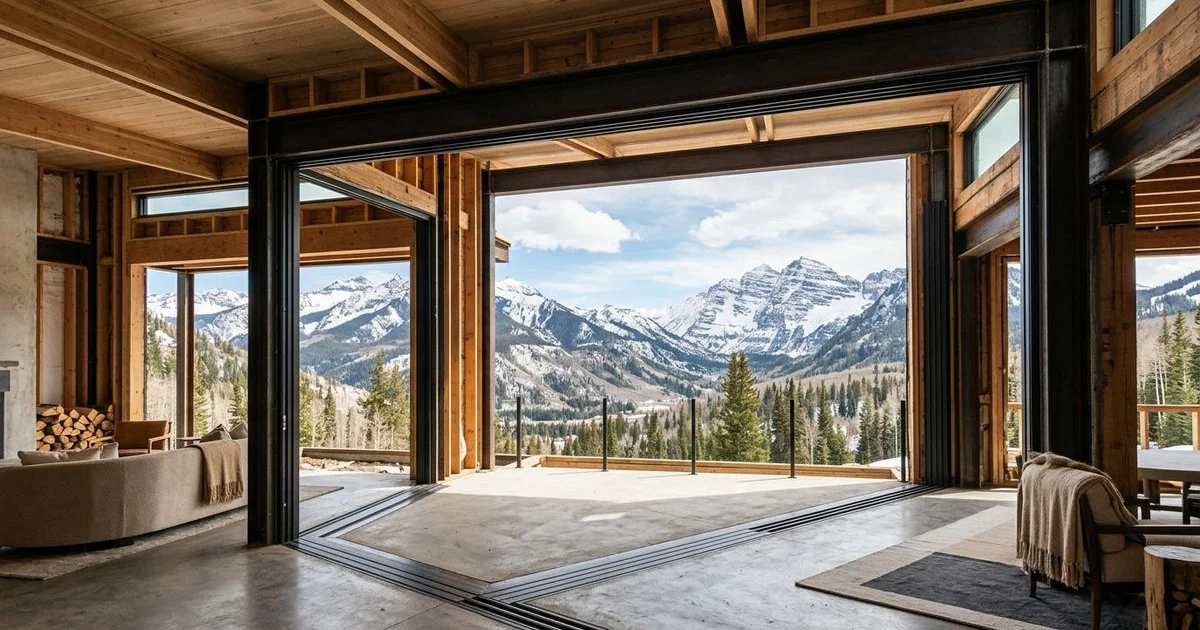

Rough Opening Dimensions

The rough opening — the framed opening the sliding-glass frame installs into — has specific dimensions documented on the shop drawings. Common considerations:

• Width tolerance — the rough opening is sized slightly larger than the frame, with shim space at the jambs
• Height tolerance — head-to-sill dimension is sized to accept the frame with shim space at the head
• Squareness — the opening is framed square within 1/4 inch across the diagonals

Framer accuracy at this stage is what determines whether the frame installs cleanly and the panels operate at their rated performance. Alta Vetro shop drawings give the framer explicit dimensions and tolerances.

Coordination Timeline

For a Colorado build, the sliding-glass sizing and structural coordination typically runs:

1. Design consultation settles panel dimensions and configuration
2. Shop drawings delivered with header sizing, jamb detail, sill prep, and rough opening dimensions
3. Structural consultant review if required by the header span or load complexity
4. Framer sizes header and jambs to the shop drawings during rough framing
5. Rough opening dimensions verified before frame delivery
6. Frame and panel install by our manufacturer-certified partner

The specification resource guide covers the BIM, section drawings, and structural documentation available to architects and GCs specifying an Alta Vetro sliding wall.

Getting the structural planning right is what makes a panoramic opening reliable at year one and year twenty. The coordination is straightforward when the shop drawings are on the framer’s desk before framing starts.
